Rectifiers
RECTIFIER
AC becomes DC
in our latest generation.
Learn more about our primary switched and thyristor controlled rectifiers for a reliable power supply. ISG's current transformers with their wide range of applications and amazing performance offer versatile solutions for all your requirements.
The PME, GGEC, GNTD and GNTW product ranges cover a huge power spectrum and are therefore suitable for all areas of industry - from power generation and transmission to telecommunications and shipbuilding. Thanks to their modular design, they can be adapted to suit your requirements and can therefore also be perfectly integrated into your existing systems.
ISG also offers transportable rectifiers of type R1 and R3, which guarantee the necessary flexibility even on the road. All rectifiers of ISG have numerous functions and interfaces, which makes our current transformers universally applicable.
We are pleased to help you personally, please contact us.

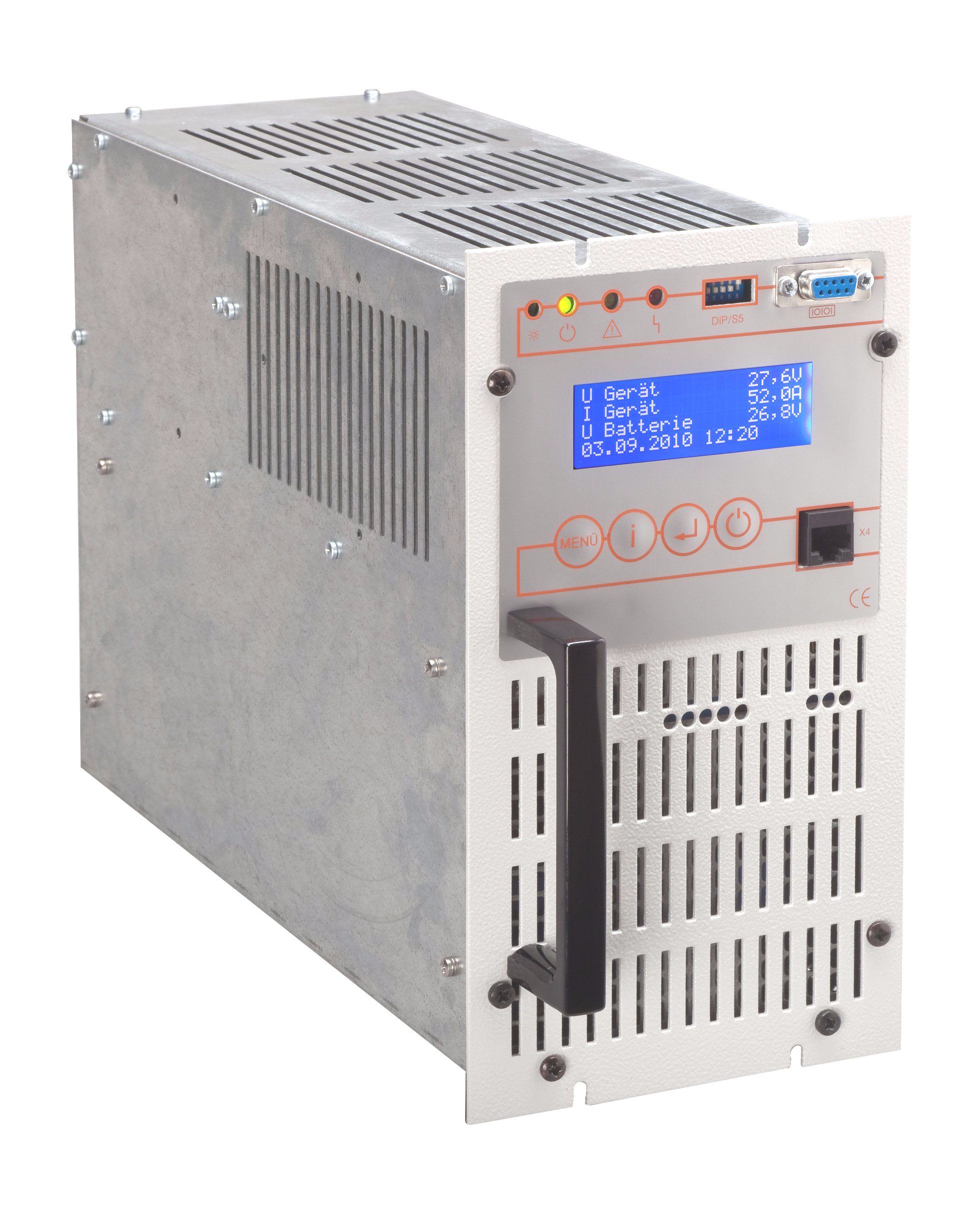

PME-19 "Rack
High performance in a small space
The primary clocked rectifier as a 19 “full plug-in provides a charging voltage of 24V to 300V.
PME-T
Even more flexible thanks to high redundancy
The primary clocked rectifier as a 1/3 19 “rack supplies a charging voltage of 24V to 300V. Output voltage changes due to load changes or input voltage fluctuations are corrected within a very short time. The output is permanently short-circuit proof thanks to constant current control.

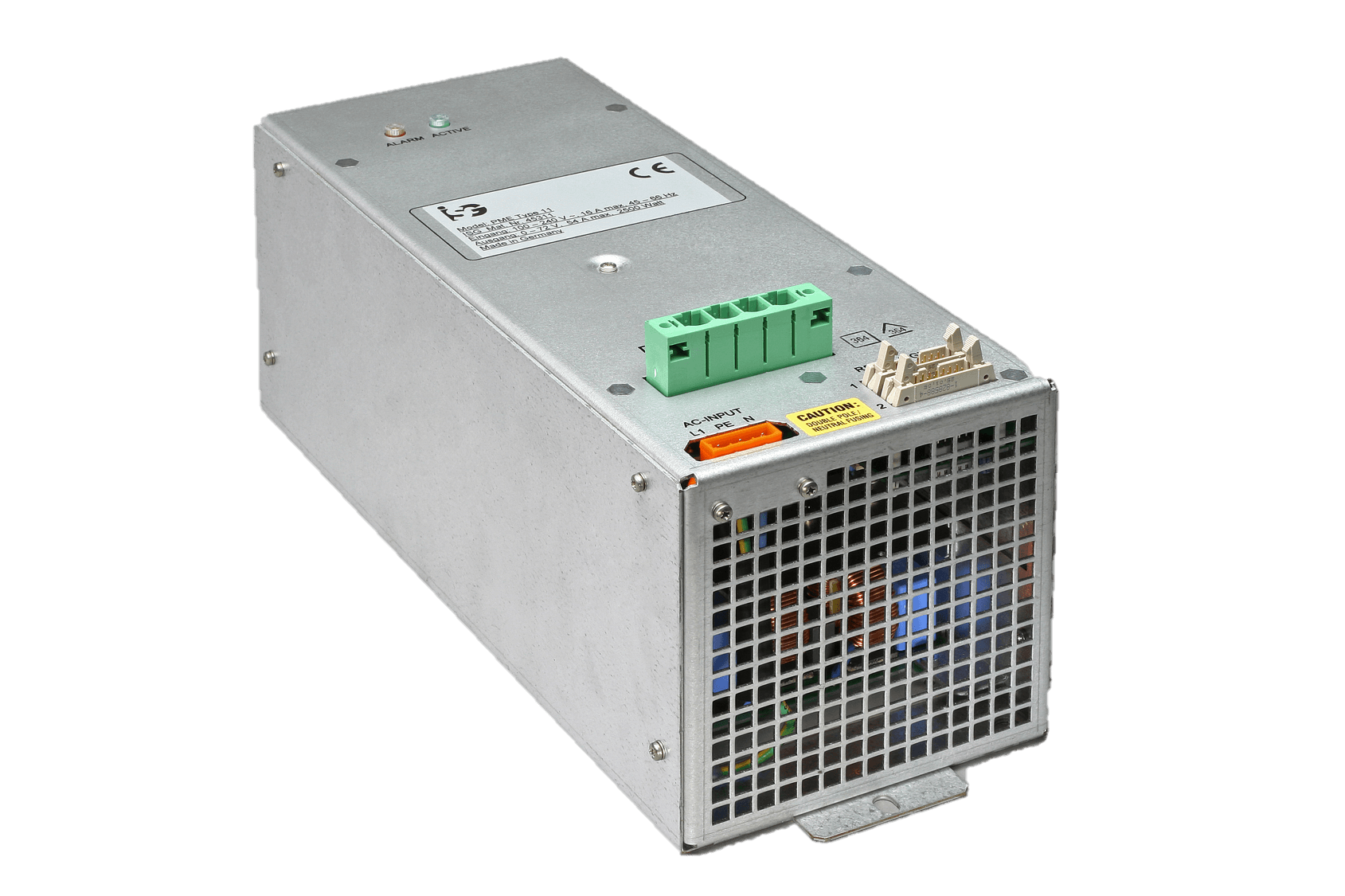

PME single module
This is a primary clocked power module. Thanks to its lightweight design, it is versatile and can be installed quickly.

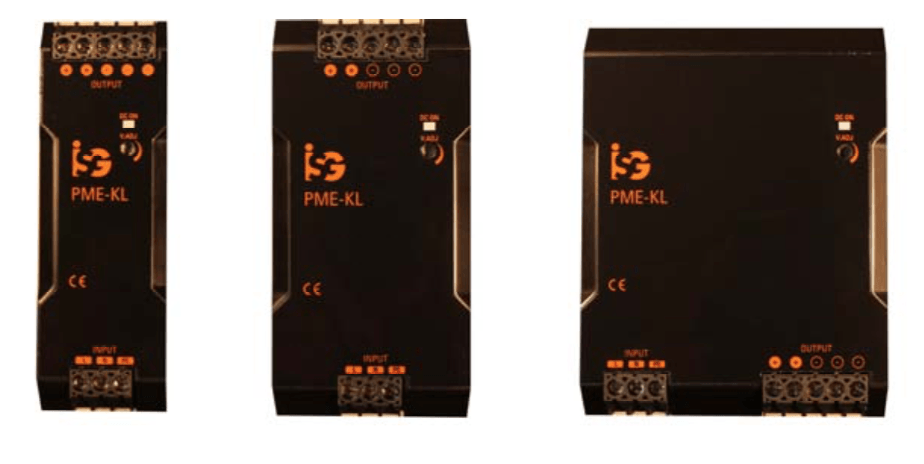

PME-KL power supply
High performance in a small space
The PME-KL power supply unit is characterized by its compact design and high reliability. The unbeatable temperature range from - 40 ° C to 70 ° C makes the power supply universal and usable worldwide. It is very easy to set in the different voltage ranges on the front. The standard parallel switchability of the modules offers maximum flexibility when implementing power supplies with higher outputs. Very simple mounting on top hat rail possible.

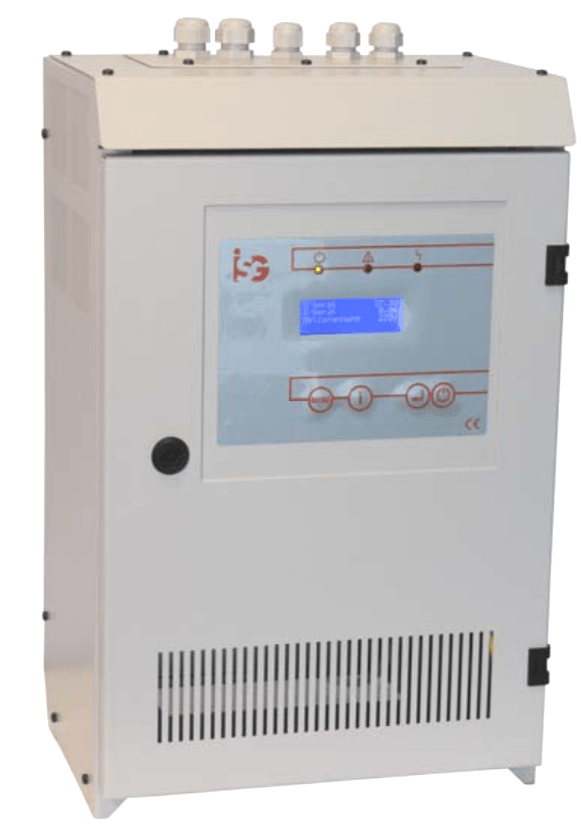

PME-compact
Perfect for everything
This primary clocked rectifier in a wall / stand housing provides a charging voltage of 24V to 300V.

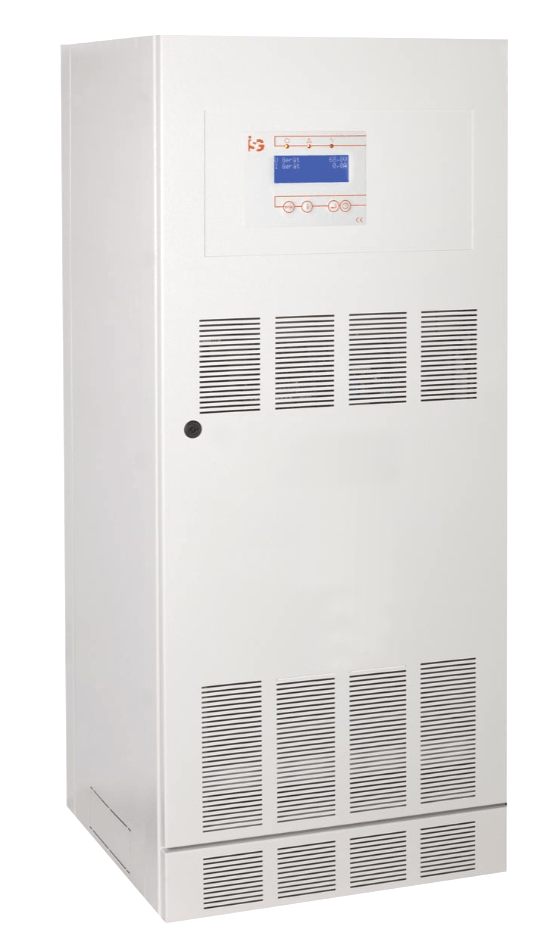

PME-vario
Full Power
This rectifier in a free-standing housing delivers a charging voltage of 24V to 300V.
PME-SI
Type series transport
A portable service rectifier always and everywhere provides you with power for your electrical and electronic devices in the shortest possible time and without much effort. The voltage and current can be continuously adjusted depending on the application. In addition, the integrated functions of the multifunctional energy station offer charging of all common battery types up to a charging voltage of 300V! Due to the compact design, a high power density, the low weight and the universal application possibilities, a portable service rectifier is part of the standard equipment of every service / emergency vehicle.

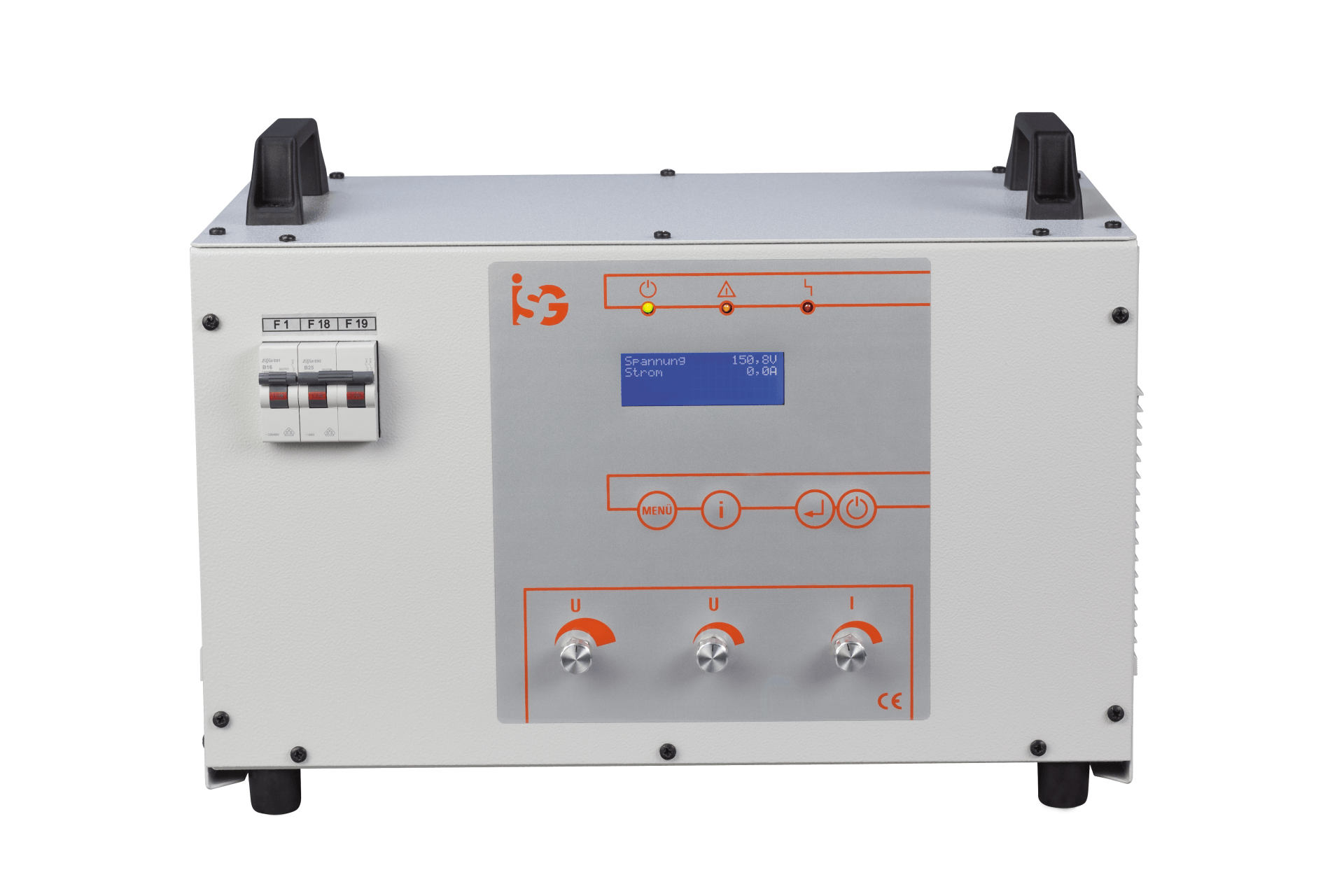

PME-R1
Simply independent
With the single-phase, adjustable service rectifier, voltage and current can be continuously adjusted depending on the application. It has a power module that enables charging of all common battery types with a charging voltage of up to 300V.

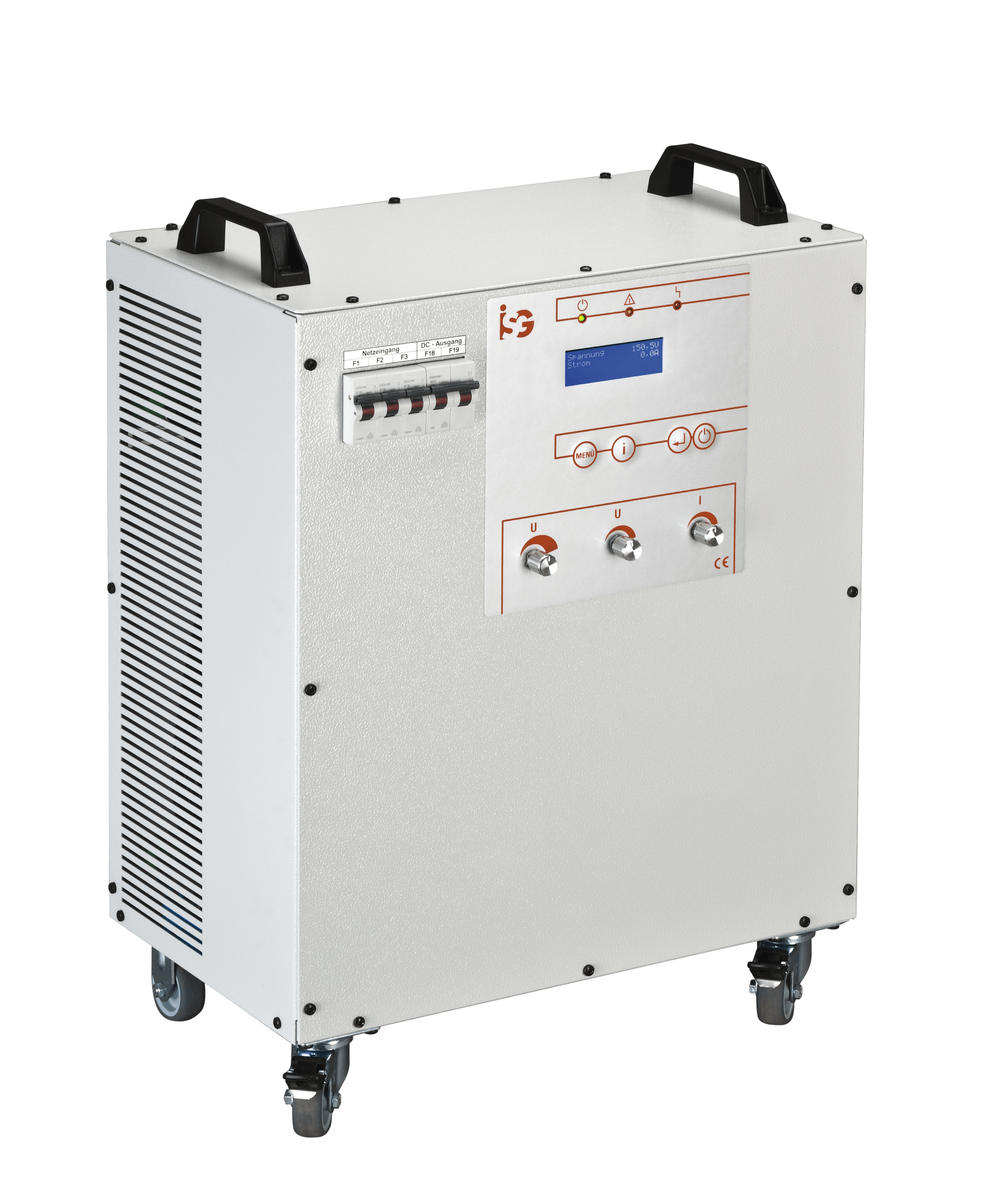

PME-R3
Maximum energy everywhere
Due to the compact design, a high power density, the low weight and the universal application possibilities, the three-phase adjustable service rectifier is part of the standard equipment of every service and emergency vehicle. Its three power modules and the integrated functions of the multifunctional energy station PME-R3 enable charging of all common battery types with a charging voltage of up to 300V.
Type series GGE
The GGE series offers cost-effective solutions for clocked rectifiers from 12V - 60V and 2.5A - 60A.Thanks to the modularly selectable monitoring options, you can use them in a variety of ways and equip them for special customer requests.

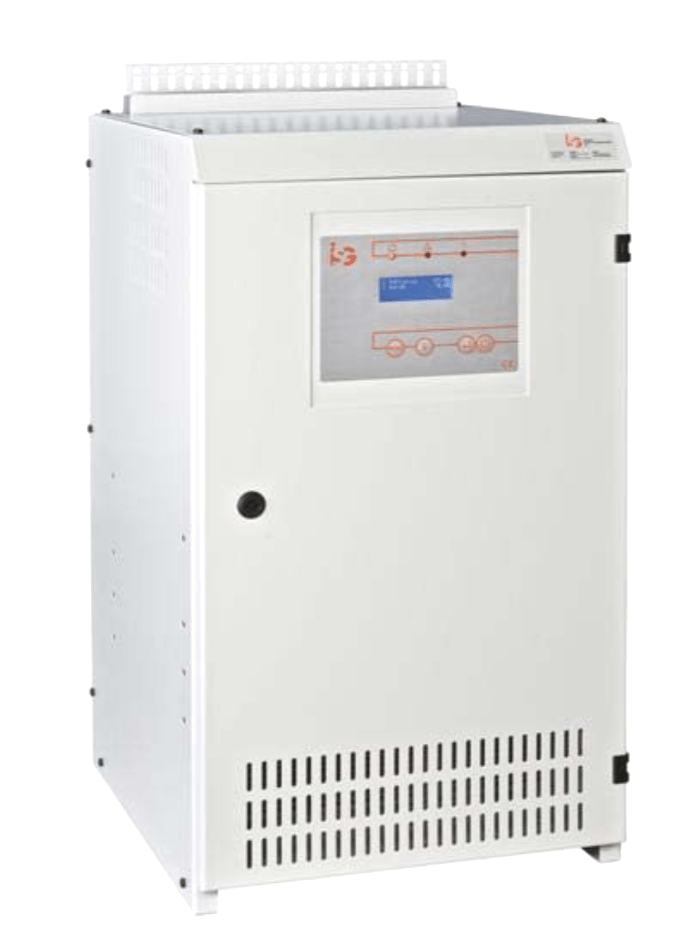

GGEC
High clock frequency for a small power range
The rectifier in a wall / stand housing offers a cost-effective solution for primary clocked rectifiers from 24V - 60V and 2.5A - 60A. With the display and monitoring unit PCU (2), the rectifier can be configured universally for any purpose.
GNTW
Rectifier thyristor controlled single phase mains input.
GNTD
The classic for higher performance
Rectifier thyristor controlled three-phase mains input
